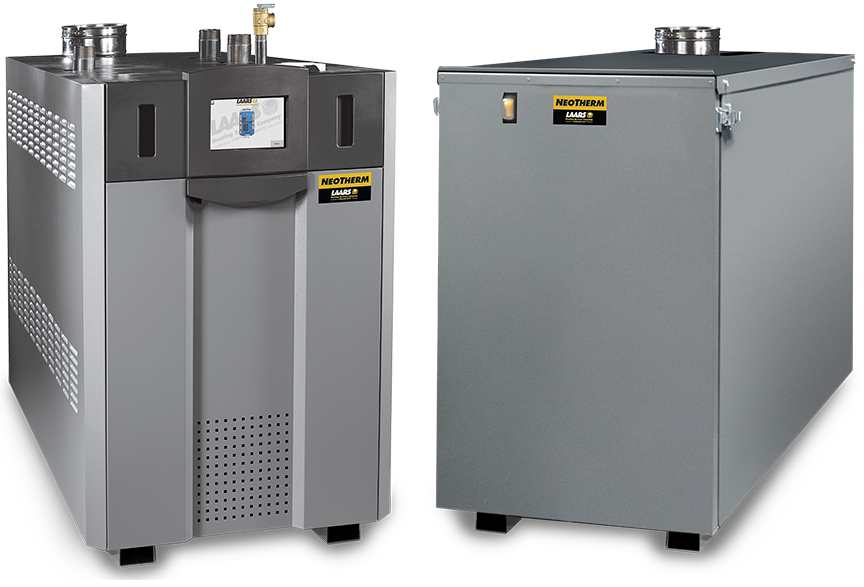

NeoTherm®

High Efficiency Commercial Modulating, Condensing Boiler and Volume Water Heater

NeoTherm is a direct vent, sealed combustion, condensing hydronic boiler or volume water heater with 95+% thermal efficiency that modulates with a 5 to 1 turndown. It features an ASME stainless steel heat exchanger, spark ignition system and low NOx emissions (less than 10 ppm), for a package that's easy to use, and easy on the environment.

NeoTherm is built standard with the new LAARS Integrated Control System that puts the ignition control, temperature control and high limit in one user-friendly device that does it all with an easy to use, large color touch screen interface. The PID control system has frost protection, and loads of other features.

Boiler Indoor Sizes: 285 to 850 MBH

Volume Water Indoor Sizes: 150 to 850 MBH

Outdoor Sizes: 150 to 850 MBH

FEATURES

  • Large Color Touch Screen
  • Less Than 10ppm NOx
  • Up to 96.6% Thermal Efficiency
  • Vent up to 100 feet, horizontal or vertical
  • Zero clearance to combustibles for tight installations
